In the realm of modern landscape architecture and entertainment technology, the laser water screen fountain stands out as a remarkable fusion of art, engineering, and innovation. This cutting-edge attraction combines the dynamic beauty of water fountains with the captivating allure of laser projections and synchronized music, creating an immersive visual and auditory experience that enchants audiences of all ages.

Unique Features of Laser Water Screen Fountain

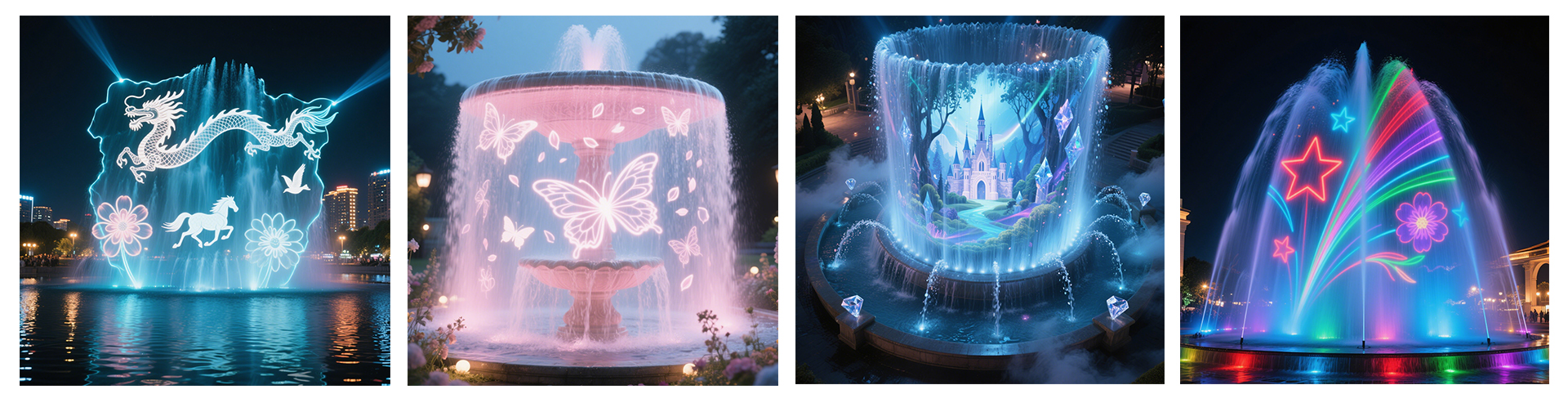

1. Stunning Water Curtain Projection

The core feature of this system is the creation of a fine, mist-like water curtain using high-pressure nozzles. This water curtain serves as a natural projection screen, typically ranging from several meters to dozens of meters in width and height. Unlike traditional solid screens, the translucent water curtain allows laser beams and projected images to interact with water particles, producing a surreal effect where visuals appear to float in mid-air. The transparency of the water also enables images to have a unique depth, with light refracting and diffusing through the droplets to create soft, ethereal contours.

2. High-Definition Laser Projections

Advanced laser systems are used to project vivid, high-definition images and videos onto the water curtain. These lasers can generate a wide spectrum of colors, from vibrant reds and blues to subtle pastels, with exceptional brightness and contrast. The projections are not limited to static images; they can display dynamic animations, moving graphics, and even real-time video feeds. Moreover, the water curtain's natural texture adds a layer of artistic distortion, giving projections a fluid, organic quality that traditional screens cannot replicate.

3. Synchronized Multi-Sensory Experience

A key characteristic of laser water screen fountains is their ability to synchronize water movements, laser projections, and musical scores seamlessly. Water jets can be programmed to rise, fall, sway, and pulse in rhythm with the music, while lasers project images that match the tempo and mood of the soundtrack. This synchronization creates a harmonious blend of visual and auditory elements, where every spurt of water, every beam of light, and every note of music work together to tell a story or evoke a specific emotion.

The working principle of a laser water screen fountain integrates fluid dynamics, optical projection, and automated control systems to create its iconic visual spectacle. Here's a breakdown of its core operational mechanisms:

1. Water Curtain Generation

At the foundation of the system, high-pressure water pumps force water through specialized nozzles designed to produce fine, uniform droplets. These nozzles are typically arranged in horizontal or vertical arrays, creating a thin, translucent "water curtain" that hangs in mid-air. The water pressure (often exceeding 100 bar) ensures droplets are small enough (50-100 microns in diameter) to form a stable, mist-like screen while remaining dense enough to reflect and refract light effectively. This curtain acts as a natural projection surface, with its translucency allowing light to pass through partially, creating a layered visual effect where images appear to float within the air.

2. Laser Projection Mechanism

High-intensity laser projectors (using RGB or single-wavelength lasers) emit coherent light beams that are directed toward the water curtain. The laser light interacts with the water droplets in two primary ways:

· Reflection & Scattering: Light bounces off the surface of droplets, making the projected images visible from the viewer's side.

· Refraction & Diffusion: Light passes through droplets, bending (refracting) and spreading (diffusing) to create soft, blended edges in the projected visuals. This interaction gives images a fluid, ethereal quality, distinct from projections on solid screens.Modern systems use digital signal processing to convert video or animation data into laser beam movements, with galvanometric mirrors or holographic elements steering the light to map images accurately across the curved or flat water curtain surface.

3. Synchronization & Control System

A central control unit coordinates the timing and behavior of three key components: water jets, laser projections, and audio. This unit uses software (often with real-time programming capabilities) to:

· Water Jet Programming: Activate solenoid valves or servo motors to control the height, angle, and flow rate of water jets, synchronizing their movements to musical beats or pre-programmed sequences.

· Laser Projection Mapping: Align laser beams with the water curtain's position, adjusting for environmental factors like wind (which may distort the curtain) and ensuring images remain stable. Dynamic content (e.g., animations reacting to music) is generated by mapping software that links audio frequencies to visual parameters (color, movement, brightness).

· Audio Integration: A sound system plays the chosen soundtrack, while sensors or pre-analyzed audio data feed into the control unit to trigger corresponding water and light responses. For example, a bass drop might prompt a surge in water jet height and a burst of colorful laser patterns.

4. Environmental Adaptation

To maintain optimal performance, the system incorporates sensors to monitor ambient conditions:

· Light Sensors: Adjust laser intensity based on daylight or nighttime brightness to ensure image visibility.

· Wind Sensors: Modify water pressure or nozzle angles to stabilize the curtain in windy environments.

· Water Quality Control: Filtration systems prevent nozzle clogging by removing impurities, while closed-loop recycling ensures water is reused, minimizing waste.

In essence, the fountain acts as a mechanical-optical orchestra, where water serves as both the canvas and a dynamic element, lasers paint the visuals with light, and the control system conducts their harmony with sound. This interplay of physical phenomena and technological precision enables the creation of immersive, larger-than-life displays that bridge the gap between reality and illusion.

Required Equipment

1. Water System Equipment

· High-Pressure Water Pumps: Generate water pressure (100+ bar) to atomize water into fine droplets, critical for forming a stable projection curtain.

· Nozzle Arrays: Horizontal/vertical configurations of precision nozzles (e.g., fan-shaped or misting nozzles) to create uniform water distribution across the curtain area.

· Water Recycling & Filtration System: Closed-loop system to reuse water (reducing waste) and filters (e.g., mesh/activated carbon) to remove impurities and prevent nozzle clogs.

· Water Jets/Valves: Solenoid valves or servo-controlled mechanisms to adjust jet height, angle, and flow rate for synchronized fountain movements.

2. Laser Projection Equipment

· Laser Projectors: High-intensity RGB or single-wavelength lasers (e.g., 5W–20W power) capable of producing vibrant, high-definition images. Modern systems use diode-pumped solid-state (DPSS) or fiber lasers for reliability.

· Beam Steering Components:

· Galvanometric Mirrors: Rapidly adjust laser beam direction for accurate image mapping across flat/curved water curtains.

· Holographic Optics/Prisms: Modify laser beam properties (e.g., diffusion, focus) to enhance interaction with water droplets.

· Projection Mapping Software: Converts digital content (videos, animations) into laser control signals, accounting for curtain geometry and environmental factors (e.g., wind-induced curtain distortion).

3. Control & Synchronization Systems

· Central Control Unit (CCU): A computer or industrial controller that integrates data from water, laser, and audio subsystems, enabling real-time coordination via pre-programmed sequences or live inputs.

· Audio Analysis Tools: Sensors or software to extract musical parameters (tempo, frequency, volume) and trigger corresponding water/light responses (e.g., low frequencies activating large jets, high frequencies prompting rapid laser patterns).

· User Interface (UI): Software for designers to create and edit show sequences, visualize projections on a virtual curtain, and fine-tune synchronization parameters.

4. Environmental Adaptation Equipment

· Sensors:

· Light Sensors: Automatically adjust laser brightness based on ambient light (e.g., higher intensity for daytime, lower for nighttime).

· Wind Sensors: Detect wind speed/direction to modify water pressure/nozzle angles, stabilizing the curtain in windy conditions.

· Water Quality Sensors: Monitor pH, turbidity, or particle levels to trigger filtration system maintenance.

· Structural Supports: Frames or rigging to mount nozzles, projectors, and sensors, often designed for outdoor durability (stainless steel, weather-resistant coatings).

Synergy Between Principle & Equipment

Each component plays a critical role in translating the fountain's operational logic into reality: pumps/nozzles create the canvas (water curtain), lasers/optics paint the visuals, the control unit conducts the performance, and sensors ensure reliability. Together, they enable the creation of immersive, technologically advanced displays that merge engineering precision with artistic creativity.
