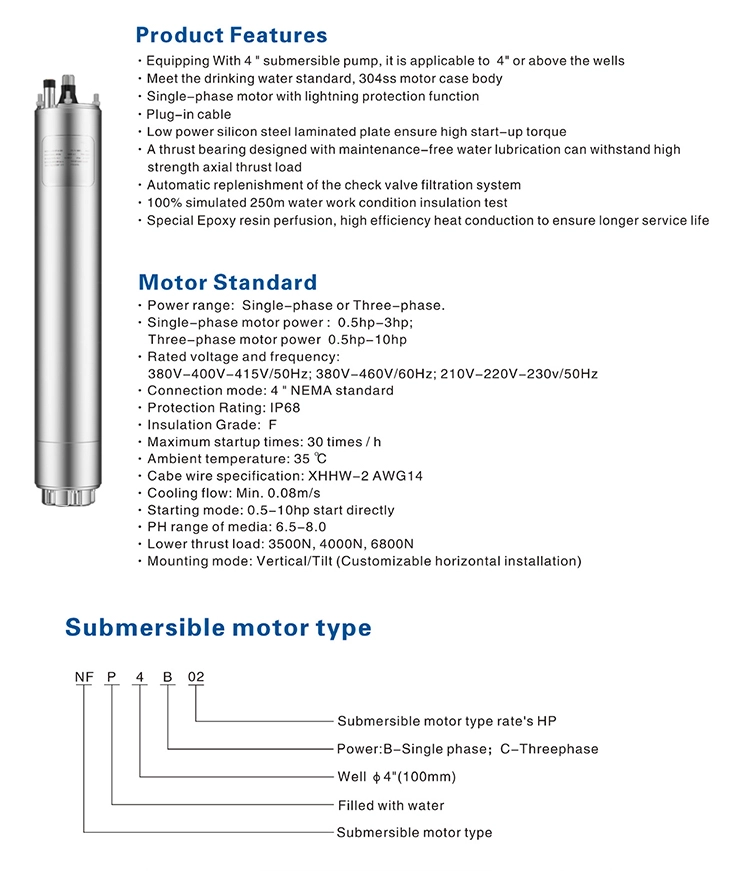

Product Features

Equipping With 4" submersible pump, it is applicable to 4" or above the wellsMeet the drinking water standard, 304ss motor case bodySingle-phase motor with lightning protection function

Plug-in cable

Low power silicon steellaminated plate ensure high start-up torqueA thrust bearing designed with maintenance-free water lubrication can withstand highstrength axialthrustload

Automatic replenishment of the check valve filtration system

100% simulated 250m water work condition insulation test

Special Epoxy resin perfusion, high efficiency heat conduction to ensure longer service life

Motor Standard

Powerrange:Single-phase or Three-phase.

Single-phase motor power:0.5hp-3hp;

Three-phase motor power 0.5hp-10hp

Rated voltaqe andfrequency:

380V-400V-415V150Hz;380V-460V160Hz;210V-220V-230v150Hz

Connection mode:4"NEMA standard

Protection Rating:lP68

Insulation Grade:F

Maximum startup times:30 times/h

Ambient temperature:35 ℃

Cabe wire specification:XHHW-2 AWG14

Cooling flow: Min.0.08m/s

Starting mode:0.5-10hp start directly

PHrange of media:6.5-8.0

Lower thrustload:3500N.4000N.6800N

Mounting mode: Vertical/Tilt (Customizable horizontal installation)

Encapsulated submersible motor has the following characteristics:

Good sealing ‌ : the motor stator is strictly closed by non-magnetic stainless steel thin-wall shielding sleeve, end ring and shell of the sealing chamber, filled with solid filler, can effectively prevent the intrusion of moisture and impurities ‌

Wide application scenarios ‌ : suitable for all kinds of underwater environment, such as underground, rivers, lakes, oceans and other occasions ‌

High sand resistance ‌ : designed with sand ring and double mechanical seal to ensure high sand resistance ‌
